Features
- Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 10W maximum output
- Kit includes wireless charging cradle, B size diamond ball base, and hardwire charger; attaches to B size double socket arms
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
The RAM® Quick-Grip™ Wireless is a patented, universal water resistant wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications.This RAM® Quick-Grip™ Wireless kit for motorcycles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.
Hardware Included
- (1) Safety Tether
- (1) Silicon sleeve for USB waterproof connection

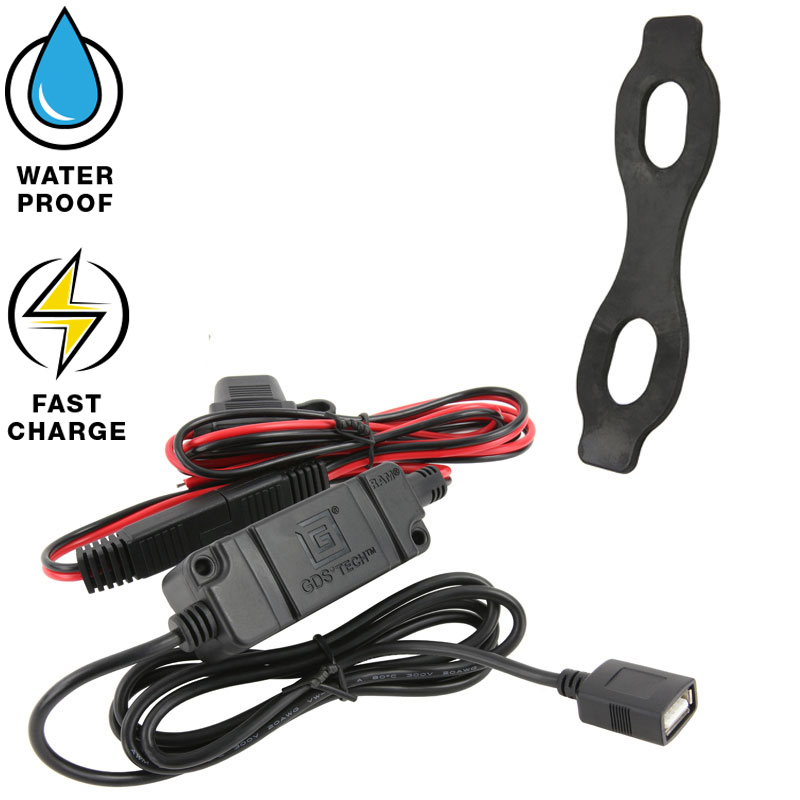

- (1) Hardwire Charger with Cable
- (4) Small zip ties
- (4) Large zip ties
Holder Dimensions
- Height Range: 5.625" - 6.625"
- Max Width: 3.125"
- Max Depth: .7"
Weight Capacity
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
Materials
- High strength composite
- Stainless steel
Power Specifications
- Input Power:5V-2A; 9V-1.67A
- Output: 5W / 7.5W / 10W
- Conversion Efficiency: 85% Max
- Maximum Case Thickness: 6mm
- Working Frequency: 110-205KHZ
- Product Standard: WPC v.1.2.4
- Qi Compatible
- Compatible with QC2.0/QC3.0 power supplies
Operating Temperature
Compliance
- Over Voltage Protection
- Short Circuit Protection
- Reverse Polarity Protection
- RoHS Compliance
- WEEE Compliance
- SAE J-1113-5 Load Dump (Transient Voltage)
- Moisture Resistant
Certifications
- CE Certification
- KC
- e-Mark Certification
- RCM Certification
- FCC Certification
Weight
Additional Information
- IMPORTANT: For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty.
- Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
- Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
- iPhone 12 and iPhone 13 products support a new and proprietary wireless charging standard not supported in this product.
Compatible Devices
Apple
iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 8, iPhone 8 Plus, iPhone SE, iPhone X, iPhone Xr, iPhone Xs, iPhone Xs Max
Blackberry
Evolve X
Blackview
BV9900, BV9900 Pro
Cat
S62, S62 Pro
Google
Pixel 3, Pixel 3 XL, Pixel 4, Pixel 4 XL, Pixel 5, Pixel 6, Pixel 6 Pro
Huawei
Mate 20 Pro, P30 Pro
Kyocera
DuraSport 5G
LG
G6, G6+, G7 ThinQ, G8 ThinQ, G8S ThinQ, V30, V35 ThinQ, V40 ThinQ, V50 ThinQ
Nokia
8 Sirocco, 9 PureView
Razer
Phone 2
Samsung
Galaxy Note 5, Galaxy Note 8, Galaxy Note 9, Galaxy Note 10, Galaxy Note 10 Plus, Galaxy Note20, Galaxy Note20 Ultra, Galaxy S10, Galaxy S10 5G, Galaxy S10+, Galaxy S20, Galaxy S20+, Galaxy S20 Ultra 5G, Galaxy S21 5G, Galaxy S21+ 5G, Galaxy S21 Ultra 5G, Galaxy S22 5G, Galaxy S22+ 5G, Galaxy S22 Ultra 5G, Galaxy S6, Galaxy S6 Edge+, Galaxy S7 Active, Galaxy S7 Edge, Galaxy S8, Galaxy S8+, Galaxy S8 Active, Galaxy S9, Galaxy S9+
Sony
Xperia XZ2, Xperia XZ3
Xiaomi
Mi 9, Mi 9 Explorer, Mi Mix 2S, Mi Mix 3
ZTE
Axon 10 Pro, Axon 9 Pro
